SpringBoot2.0集成FastDFS
前两篇整体上介绍了通过 Nginx 和 FastDFS 的整合来实现文件服务器。但是，在实际开发中对图片或文件的操作都是通过应用程序来完成的，因此，本篇将介绍 Spring Boot 整合 FastDFS 客户端来实现对图片/文件服务器的访问。
如果有不了解 FastDFS 的读者可以先浏览《CentOS7 安装FastDFS分布式文件系统》或是另行查阅网上相关资料。
一、整合编码

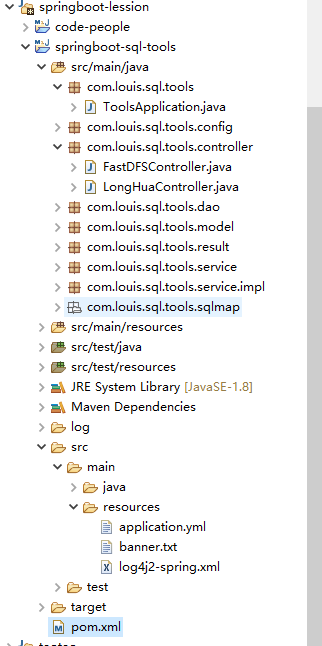

项目整体的代码结构图如下：
添加依赖
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.0.4.RELEASE</version>
<relativePath /> <!-- lookup parent from repository -->
</parent>
<groupId>com.sql.tools</groupId>
<artifactId>springboot-sql-tools</artifactId>
<version>0.0.1-SNAPSHOT</version>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
<java.version>1.8</java.version>
<mybatis.spring.version>1.3.2</mybatis.spring.version>
<com.alibaba.druid.version>1.1.10</com.alibaba.druid.version>
<log4j.version>1.2.17</log4j.version>
<pagehelper.version>1.2.5</pagehelper.version>
<docker.image.prefix>kitty</docker.image.prefix>
<fastjson.version>1.2.48</fastjson.version>
<commons-lang3>3.4</commons-lang3>
<oracle.version>11.2.0.4.0</oracle.version>
<spring.boot.admin.version>2.0.0</spring.boot.admin.version>
</properties>
<dependencies>
<!-- spring boot -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<exclusions>
<exclusion>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</exclusion>
</exclusions>
</dependency>
<!-- https://mvnrepository.com/artifact/org.springframework.boot/spring-boot-starter-log4j2 -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-log4j2</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<!-- spring aop -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
<!-- mybatis -->
<dependency>
<groupId>org.mybatis.spring.boot</groupId>
<artifactId>mybatis-spring-boot-starter</artifactId>
<version>${mybatis.spring.version}</version>
</dependency>
<!-- mysql -->
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
</dependency>
<!-- https://mvnrepository.com/artifact/com.oracle/ojdbc6 -->
<dependency>
<groupId>com.oracle</groupId>
<artifactId>ojdbc6</artifactId>
<version>${oracle.version}</version>
</dependency>
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>druid-spring-boot-starter</artifactId>
<version>${com.alibaba.druid.version}</version>
</dependency>
<!-- log4j -->
<dependency>
<groupId>log4j</groupId>
<artifactId>log4j</artifactId>
<version>${log4j.version}</version>
</dependency>
<!-- swagger -->
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>2.8.0</version>
</dependency>
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>2.8.0</version>
</dependency>
<!-- pagehelper -->
<dependency>
<groupId>com.github.pagehelper</groupId>
<artifactId>pagehelper-spring-boot-starter</artifactId>
<version>${pagehelper.version}</version>
</dependency>
<!-- fastjson -->
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>${fastjson.version}</version>
</dependency>
<dependency>
<groupId>org.apache.commons</groupId>
<artifactId>commons-lang3</artifactId>
</dependency>
<!-- https://mvnrepository.com/artifact/net.oschina.zcx7878/fastdfs-client-java -->
<!-- fastdfs-client-java -->
<dependency>
<groupId>com.github.tobato</groupId>
<artifactId>fastdfs-client</artifactId>
<version>1.26.5</version>
<exclusions>
<exclusion>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
</exclusion>
</exclusions>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
<!-- 打包时拷贝MyBatis的映射文件 -->
<resources>
<resource>
<directory>src/main/java</directory>
<includes>
<include>**/sqlmap/*.xml</include>
</includes>
<filtering>false</filtering>
</resource>
<resource>
<directory>src/main/resources</directory>
<includes>
<include>**/*.*</include>
</includes>
<filtering>true</filtering>
</resource>
</resources>
</build>
</project>
我在里面添加了Mybatis和数据连接驱动，使用的日志系统是Solf4j,log4j2
配置文件如下：
application.yml
# Tomcat
server:
tomcat:
uri-encoding: UTF-8
max-threads: 1000
min-spare-threads: 30
port: 8001
session:
timeout:7200
context-path: /lion-admin
# DataSource
spring:
datasource:
name: druidDataSource
type: com.alibaba.druid.pool.DruidDataSource
druid:
driver-class-name: oracle.jdbc.driver.OracleDriver
url: jdbc:oracle:thin:@192.168.0.205:1521:orcl
username: gcloud_check
password: gcloud_check
filters: stat,wall,log4j,config
max-active: 100
initial-size: 1
max-wait: 60000
min-idle: 1
time-between-eviction-runs-millis: 60000
min-evictable-idle-time-millis: 300000
validation-query: select 'x' FROM DUAL
test-while-idle: true
test-on-borrow: false
test-on-return: false
pool-prepared-statements: true
max-open-prepared-statements: 50
max-pool-prepared-statement-per-connection-size: 20
# FastDFS
# ===================================================================
# 分布式文件系统FDFS配置
# ===================================================================
fdfs:
so-timeout: 1501
connect-timeout: 601
thumb-image: #缩略图生成参数
width: 150
height: 150
web-server-url: 192.168.0.137/
tracker-list: 192.168.0.137:22122
端口:8001
数据使用的是：Oracle
注意： FastDFS的第三方客户端包引入的时候要去除logback的包，不然与log4j2冲突,启动会报错
<dependency>
<groupId>com.github.tobato</groupId>
<artifactId>fastdfs-client</artifactId>
<version>1.26.5</version>
<exclusions>
<exclusion>
<groupId>ch.qos.logback</groupId>
<artifactId>logback-classic</artifactId>
</exclusion>
</exclusions>
</dependency>
上边的 fastdfs-client 是并非 FastDFS Client 原作者编写的整合包，具体详情可以访问 https://github.com/tobato/FastDFS_Client
log4j2-spring.xml
<?xml version="1.0" encoding="UTF-8"?>
<!--设置log4j2的自身log级别为warn-->
<!--日志级别以及优先级排序: OFF > FATAL > ERROR > WARN > INFO > DEBUG > TRACE > ALL -->
<!--Configuration后面的status，这个用于设置log4j2自身内部的信息输出，可以不设置，
当设置成trace时，你会看到log4j2内部各种详细输出-->
<!--monitorInterval：Log4j能够自动检测修改配置 文件和重新配置本身，设置间隔秒数-->
<configuration status="warn" monitorInterval="30">
<!--先定义所有的appender-->
<appenders>
<!--这个输出控制台的配置-->
<console name="Console" target="SYSTEM_OUT">
<!--输出日志的格式-->
<PatternLayout pattern="[%d{HH:mm:ss:SSS}] [%p] - %l - %m%n"/>
</console>
<!--文件会打印出所有信息，这个log每次运行程序会自动清空，由append属性决定，这个也挺有用的，适合临时测试用-->
<File name="log" fileName="log/test.log" append="false">
<PatternLayout pattern="%d{HH:mm:ss.SSS} %-5level %class{36} %L %M - %msg%xEx%n"/>
</File>
<!-- 这个会打印出所有的info及以下级别的信息，每次大小超过size，
则这size大小的日志会自动存入按年份-月份建立的文件夹下面并进行压缩，作为存档-->
<RollingFile name="RollingFileInfo" fileName="${sys:user.home}/logs/hpaasvc/info.log"
filePattern="${sys:user.home}/logs/hpaasvc/$${date:yyyy-MM}/info-%d{yyyy-MM-dd}-%i.log">
<Filters>
<!--控制台只输出level及以上级别的信息（onMatch），其他的直接拒绝（onMismatch）-->
<ThresholdFilter level="INFO" onMatch="ACCEPT" onMismatch="DENY"/>
<ThresholdFilter level="WARN" onMatch="DENY" onMismatch="NEUTRAL"/>
</Filters>
<PatternLayout pattern="[%d{HH:mm:ss:SSS}] [%p] - %l - %m%n"/>
<Policies>
<TimeBasedTriggeringPolicy/>
<SizeBasedTriggeringPolicy size="100 MB"/>
</Policies>
</RollingFile>
<RollingFile name="RollingFileWarn" fileName="${sys:user.home}/logs/hpaasvc/warn.log"
filePattern="${sys:user.home}/logs/hpaasvc/$${date:yyyy-MM}/warn-%d{yyyy-MM-dd}-%i.log">
<Filters>
<ThresholdFilter level="WARN" onMatch="ACCEPT" onMismatch="DENY"/>
<ThresholdFilter level="ERROR" onMatch="DENY" onMismatch="NEUTRAL"/>
</Filters>
<PatternLayout pattern="[%d{HH:mm:ss:SSS}] [%p] - %l - %m%n"/>
<Policies>
<TimeBasedTriggeringPolicy/>
<SizeBasedTriggeringPolicy size="100 MB"/>
</Policies>
<!-- DefaultRolloverStrategy属性如不设置，则默认为最多同一文件夹下7个文件，这里设置了20 -->
<DefaultRolloverStrategy max="20"/>
</RollingFile>
<RollingFile name="RollingFileError" fileName="${sys:user.home}/logs/hpaasvc/error.log"
filePattern="${sys:user.home}/logs/hpaasvc/$${date:yyyy-MM}/error-%d{yyyy-MM-dd}-%i.log">
<ThresholdFilter level="ERROR"/>
<PatternLayout pattern="[%d{HH:mm:ss:SSS}] [%p] - %l - %m%n"/>
<Policies>
<TimeBasedTriggeringPolicy/>
<SizeBasedTriggeringPolicy size="100 MB"/>
</Policies>
</RollingFile>
</appenders>
<!--然后定义logger，只有定义了logger并引入的appender，appender才会生效-->
<loggers>
<!--过滤掉spring和hibernate的一些无用的debug信息-->
<logger name="org.springframework" level="INFO">
</logger>
<logger name="org.mybatis" level="INFO">
</logger>
<root level="INFO">
<appender-ref ref="Console"/>
<appender-ref ref="RollingFileInfo"/>
<appender-ref ref="RollingFileWarn"/>
<appender-ref ref="RollingFileError"/>
</root>
</loggers>
</configuration>
或者看这边配置log4j2的整合文章SpringBoot 2.0 的Log4j2日志信息配置
代码
/**
* @author lr
* @date 2018年12月26日 下午4:28:14
* @version V1.0.0
*/
package com.louis.sql.tools;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.EnableMBeanExport;
import org.springframework.jmx.support.RegistrationPolicy;
@Configuration
@ComponentScan
@EnableMBeanExport(registration = RegistrationPolicy.IGNORE_EXISTING)
@SpringBootApplication
public class ToolsApplication {
public static void main(String[] args) {
SpringApplication.run(ToolsApplication.class, args);
}
}
FastDFSClient.java
/**
* @author lr
* @date 2019年1月28日 下午1:41:39
* @version V1.0.0
*/
package com.louis.sql.tools.config;
import java.io.ByteArrayInputStream;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.nio.charset.Charset;
import org.apache.commons.io.FilenameUtils;
import org.apache.commons.lang3.StringUtils;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import org.springframework.web.multipart.MultipartFile;
import com.github.tobato.fastdfs.domain.conn.FdfsWebServer;
import com.github.tobato.fastdfs.domain.fdfs.StorePath;
import com.github.tobato.fastdfs.domain.proto.storage.DownloadByteArray;
import com.github.tobato.fastdfs.exception.FdfsUnsupportStorePathException;
import com.github.tobato.fastdfs.service.FastFileStorageClient;
@Component
public class FastDFSClient {
private final Logger logger = LoggerFactory.getLogger(FastDFSClient.class);
@Autowired
private FastFileStorageClient storageClient;
@Autowired
private FdfsWebServer fdfsWebServer;
/**
* 上传文件
* @param file 文件对象
* @return 文件访问地址
* @throws IOException
*/
public String uploadFile(MultipartFile file) throws IOException {
StorePath storePath = storageClient.uploadFile(file.getInputStream(),file.getSize(), FilenameUtils.getExtension(file.getOriginalFilename()),null);
return getResAccessUrl(storePath);
}
/**
* 上传文件
* @param file 文件对象
* @return 文件访问地址
* @throws IOException
*/
public String uploadFile(File file) throws IOException {
FileInputStream inputStream = new FileInputStream (file);
StorePath storePath = storageClient.uploadFile(inputStream,file.length(), FilenameUtils.getExtension(file.getName()),null);
return getResAccessUrl(storePath);
}
/**
* 将一段字符串生成一个文件上传
* @param content 文件内容
* @param fileExtension
* @return
*/
public String uploadFile(String content, String fileExtension) {
byte[] buff = content.getBytes(Charset.forName("UTF-8"));
ByteArrayInputStream stream = new ByteArrayInputStream(buff);
StorePath storePath = storageClient.uploadFile(stream,buff.length, fileExtension,null);
return getResAccessUrl(storePath);
}
// 封装图片完整URL地址
private String getResAccessUrl(StorePath storePath) {
String fileUrl = fdfsWebServer.getWebServerUrl() + storePath.getFullPath();
return fileUrl;
}
/**
* 下载文件
* @param fileUrl 文件url
* @return
*/
public byte[] download(String fileUrl) {
String group = fileUrl.substring(0, fileUrl.indexOf("/"));
String path = fileUrl.substring(fileUrl.indexOf("/") + 1);
byte[] bytes = storageClient.downloadFile(group, path, new DownloadByteArray());
return bytes;
}
/**
* 删除文件
* @param fileUrl 文件访问地址
* @return
*/
public void deleteFile(String fileUrl) {
if (StringUtils.isEmpty(fileUrl)) {
return;
}
try {
StorePath storePath = StorePath.parseFromUrl(fileUrl);
storageClient.deleteFile(storePath.getGroup(), storePath.getPath());
} catch (FdfsUnsupportStorePathException e) {
logger.warn(e.getMessage());
}
}
}
controller
/**
* @author lr
* @date 2019年1月28日 下午1:50:47
* @version V1.0.0
*/
package com.louis.sql.tools.controller;
import java.net.URLEncoder;
import java.util.HashMap;
import java.util.Map;
import javax.servlet.ServletOutputStream;
import javax.servlet.http.HttpServletResponse;
import org.apache.commons.io.IOUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.multipart.MultipartFile;
import com.louis.sql.tools.config.FastDFSClient;
@RestController
@RequestMapping("/fdfs")
public class FastDFSController {
@Autowired
private FastDFSClient fdfsClient;
/**
* 文件上传
* @param file
* @return
* @throws Exception
*/
@RequestMapping("/upload")
public Map<String,Object> upload(MultipartFile file) throws Exception{
String url = fdfsClient.uploadFile(file);
Map<String,Object> result = new HashMap<>();
result.put("code", 200);
result.put("msg", "上传成功");
result.put("url", url);
return result;
}
/**
* 文件下载
* @param fileUrl url 开头从组名开始
* @param response
* @throws Exception
*/
@RequestMapping("/download")
public void download(String fileUrl, HttpServletResponse response) throws Exception{
byte[] data = fdfsClient.download(fileUrl);
response.setCharacterEncoding("UTF-8");
response.setHeader("Content-disposition", "attachment;filename=" + URLEncoder.encode("test.jpg", "UTF-8"));
// 写出
ServletOutputStream outputStream = response.getOutputStream();
IOUtils.write(data, outputStream);
}
}
测试效果

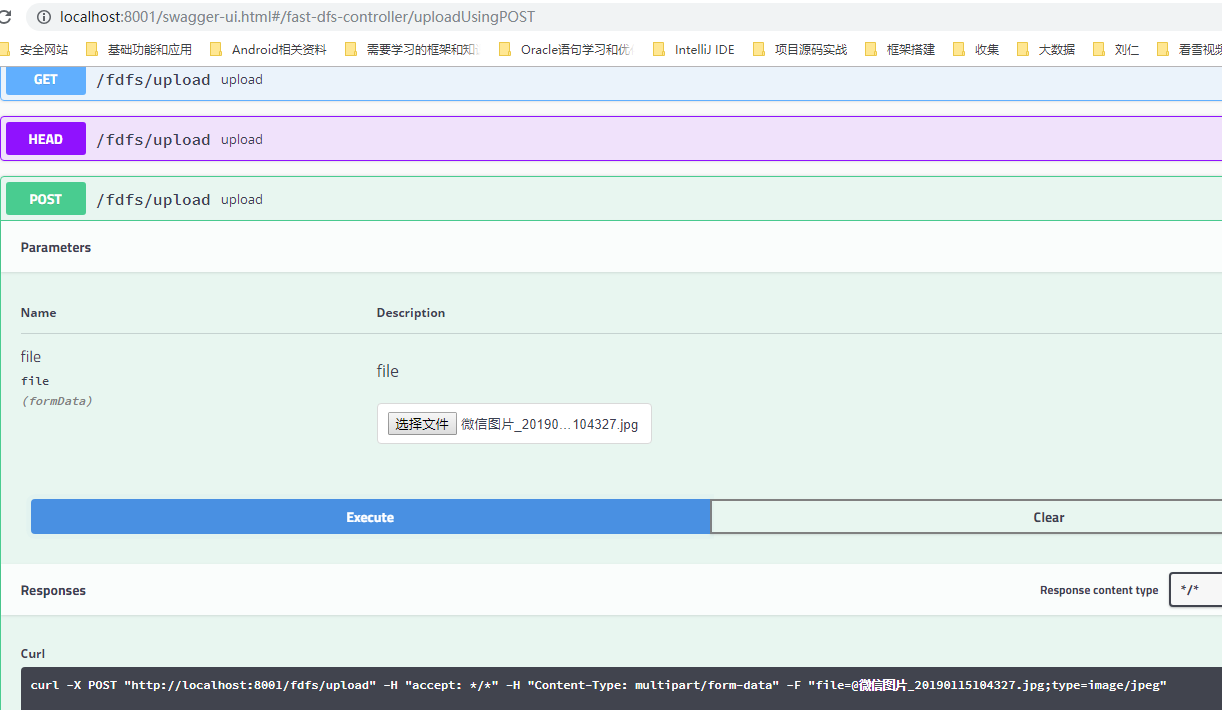

然后通过swagger-ui的接口直接测试文件上传功能
访问地址：[swagger-ui首页]http://localhost:8001/swagger-ui.html#
如果需要看源码：https://github.com/PlayTaoist/SpringBoot2-FastDFS
=======================================================================================
微信公众号：
